Product Code ARB-TS350
350L Tank Fed Emergency Shower with Eyewash, Side Panelling and Platform Operation
Product Code ARB-TS350
The Arboles UK ARB-TS350 is your tank fed emergency shower option where you have restricted space or do not require the 15 minutes of water supply. The eyewash can be orientated on the left or right hand side

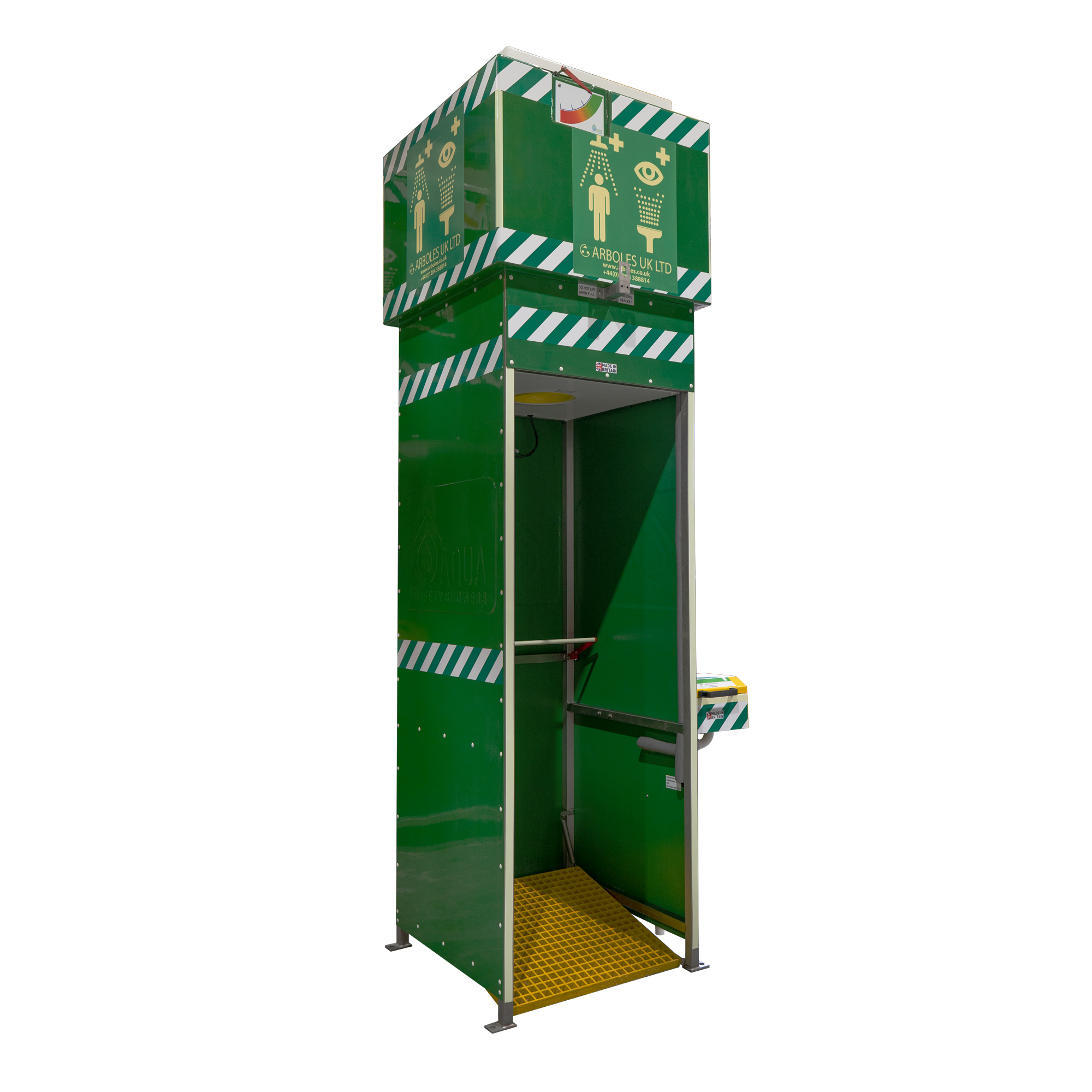

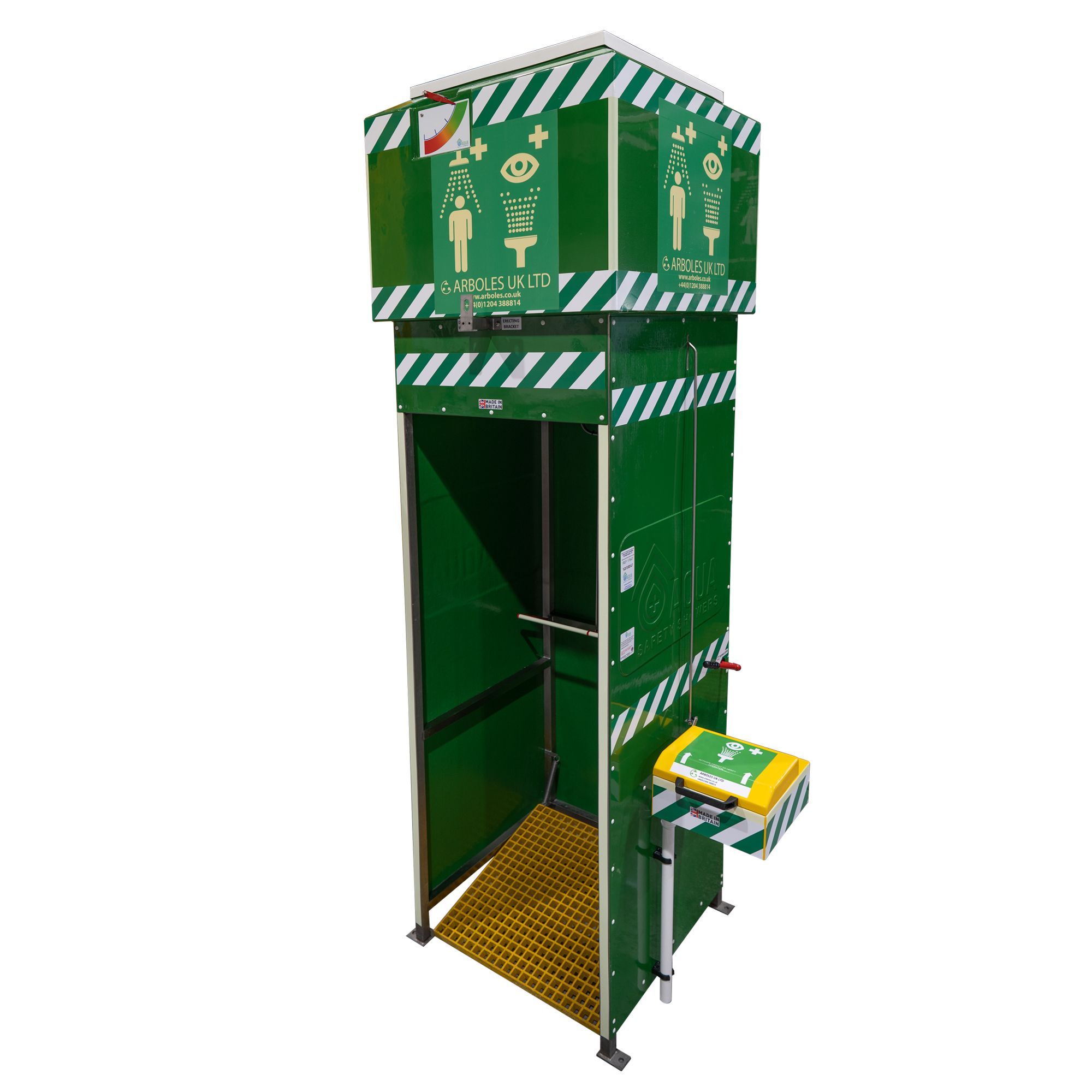

350L Tank-Fed Safety Shower with GRP header tank and stainless steel framework
- Delivers over 5 minutes of tepid water without a mains water supply
- Built from robust, corrosion-resistant materials for a long and trouble-free life
- Illuminated signs mean the shower can be quickly located, even in low light conditions
- Comes with water level indicator, water temperature display and testing lever for easy testing and maintenance
- Many optional extras are also available to suit your requirements
Main Benefits
- Guarantees over 5 minutes of tepid water at correct pattern and flow rate
- Corrosion resistant: Built to last
- Highly visible in an emergency
- Easy to test and maintain
Technical Details
WATER SUPPLY PRESSURE 0.5 – 6 bar
TEMPERATURE -25°C to +35°C
INLET CONNECTION 1” BSPM (flanged options available)
SHOWER DRAIN OUTLET CONNECTION – if fitted 2” BSPF (flanged options available)
SCREENED OVERFLOW 40mm PVC-U
SHOWER FLOW RATE 76lpm
EYEBATH FLOW RATE Min 1.5lpm
BALL FLOAT VALVES for quick refill 2 x ¾” stainless valves with 6” stainless floats
SHOWER OPERATION Stainless Steel panic bar (GRP foot platform as option)
EYEBATH OPERATION Lift GRP lid (stainless foot operation as option)
SIGNAGE Self-adhesive photo-luminous pictorial signs
