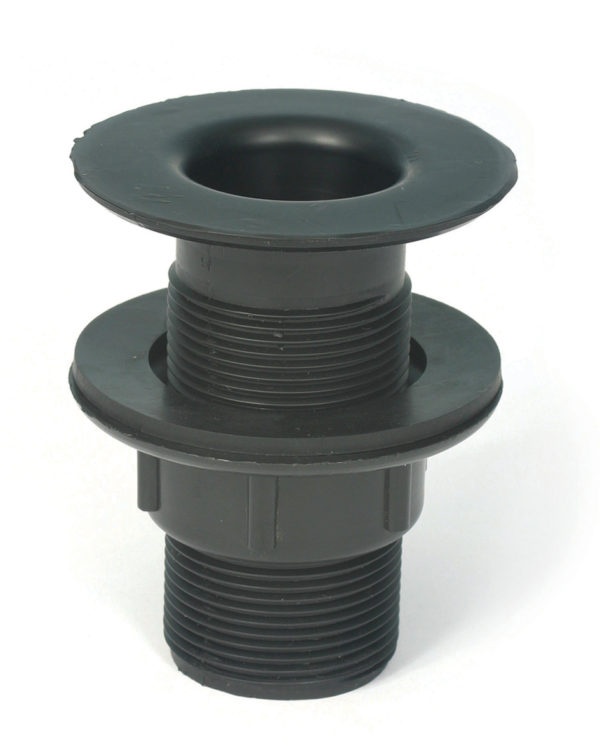

The range of Durapipe Vulcathene threaded wastes has been designed to suit a variety of ceramic, porcelain, metal or plastic sink outlets.
Manufactured using high-quality polypropylene, Durapipe Vulcathene wastes are available in both slotted and unslotted designs. Threaded wastes have been designed with 1-1/4”, 1-1/2” and 2” BSP threads with flange widths of 60, 73 and 85mm to suit different outlets. Slotted wastes are available for Belfast sinks or for use where the waste has to accept an overflow.
Slotted wastes for laboratory sinks are supplied with two waste gaskets, unslotted wastes are supplied with one. Both the 1-1/4” and 1-1/2” waste outlets are available in all flange diameters and either 89mm or 102mm lengths, while the 2” waste outlet is available in 85mm flange diameter and 102mm length only. Wastes are supplied with a plug (chain fastening not included).
Please indicate waste diameter, flange diameter and whether unslotted or slotted is required when ordering.
| Product Code |
A (mm) |
B (mm) |
C (inch) |
D (mm) |
| Unslotted Waste |
|
|
|
|
| V5504011 |
60 |
89 |
1¼ |
3 |
| V5504031 |
73 |
102 |
1¼ |
3 |
| V5504051 |
85 |
102 |
1¼ |
3 |
| V5504071 |
60 |
89 |
1½ |
3 |
| V5504091 |
73 |
102 |
1½ |
3 |
| V5504111 |
85 |
102 |
1½ |
3 |
| V5504131 |
85 |
102 |
2 |
3 |
gms 1¼”-65; 1½”-75; 2″-90
| Product Code |
A (mm) |
B (mm) |
C (inch) |
D (mm) |
| Slotted Waste |
|
|
|
|
| V5504021 |
60 |
89 |
1¼ |
3 |
| V5504041 |
73 |
102 |
1¼ |
3 |
| V5504061 |
85 |
102 |
1¼ |
3 |
| V5504081 |
60 |
89 |
1½ |
3 |
| V5504101 |
73 |
102 |
1½ |
3 |
| V5504121 |
85 |
102 |
1½ |
3 |
| V5504141 |
85 |
102 |
2 |
3 |
gms 1¼”-65; 1½”-75; 2″-90
Vulcathene plug and chain assemblies are also available for these wastes. Please click here
Not sure which style of waste you need to match your sink? Click here
Want to know a bit more how Durapipe Vulcathene chemical drainage products are used? Then have a look at our blog posts here, here and here.
